Brand:ZTE
Module name: OLT

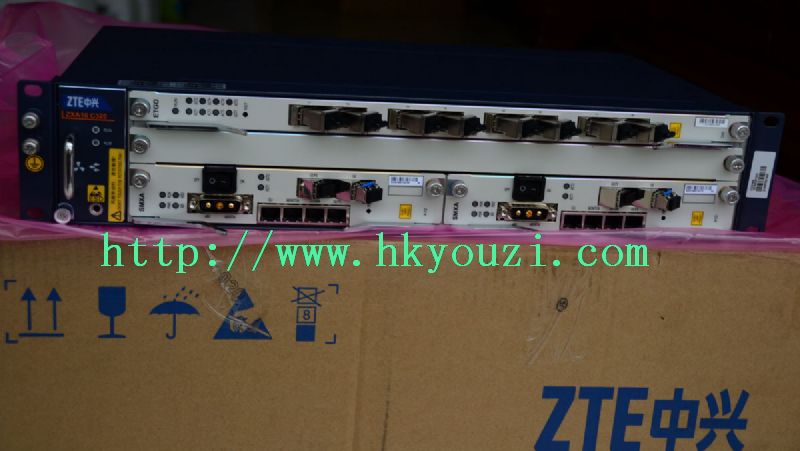

Model:ZXA10 C320 SMXA/1*2/ETGO*1

C320 rack
C320 management card SMXA/1 1G uplink*2PCS
C320 FAN Components*1PCS
C320 service cards ETGO(with 8 pcs EPON-OLT-SFPs)*1PCS
Cables

In the face of increasing demands for high bandwidth and multi-play services, operators have to make a balance between economy and mass roll-out. How to smoothly evolve from FTTC, FTTB and FTTCab to FTTH is a challenge in front of telcos nowadays. Operators are considering building a PON network that is green, future-proof and saves TCO.
ZTE C320 OLT, a small size, full-service optical access convergent platform, provides carrier class QoS and reliable network to meet the requirements for small-scale implementation of FTTx services. The ZXA10 C320 can share line cards with ZXA10 C300 (ZTE existing 10U-high large-capacity OLT) and this compact OLT is able to provide up to 2,048 (splitting ratio 1:64) ONTs access.

Main Parameters:

2U high,horizontal plug card,front access
19-inch rack with 4 slot
System Capacity: 2 service card slots(GPON/EPON/P2P/10G EPON/XG-PON1)
Up to 2048 GPON subscribers access
Up to 2*10GE uplink
Physical transmission distance: 20Km
Management interface: CLI ( Telnet or RS232), SSH, SNMP V1/2/3, SNMP proxy
Key Features:

Compatible with ITU G.984.x
Support ITU-T G.987.x and G.988
Support Optical Laser Supervising (OLS)
Physical reach: 20~60km
GPON Transceiver power: Class B+ and Class C+
XGPON Transceiver power: N1, N2, E1 and E2
Support Type B and Type C protection
Support SR-DBA and NSR-DBA
Downstream and upstream FEC
Support AES128 encryption
Support SCB (Single Copy Broadcast)
Full G.984.4 OMCI Stack
Support migration to NG PON2
4K VLAN number, IEEE 802.1q, 1:1/N:1 VLAN, VLAN translation, VLAN Stacking (QinQ )
VRF, ARP agent/ proxy
STP/RSTP/MSTP
Link aggregation IEEE 802.3ad
DHCP server, DHCP Relay ( option 60/82), DHCP proxy, DHCPv6 L2/L3 relay agent
IPv4 and IPv6 dual stack
1588v2, 1PPS+TOD, SynE, BIT/HZ
L3 routing: IPv4/6 Statistic routing, OSPFv2, BGPv4, RIP V1/V2, ISIS
L2- L4 flow classification and ACL
IGMP V1/2/3, IGMP/MLD snooping/proxy/router
256 Multicast VLANs
IGMP pre-join and fast leave
Supported Cards:

Control & Switch Card:
SMXA: C320 switch management/uplink card (1 x NMS, 1 x Serial, 1 x 10G SFP+, 1 x GE SFP, 1 x GE RJ45, 1 x Monitoring)
Subscriber Cards:
GTGO/GTGH - 8/16 ports GPON line card
GTXO - 8 ports XG-PON1 line card
FTGK - 48 ports P2P/24 ports GE/FE optical Ethernet interface card
CTUB - 32-channel E1 unbalanced CES interface card
CTLA - STM-N CES interface card

ZXA10 C320 configuration:

C320 rack
C320 management card SMXA/1 1G uplink*2PCS
C320 FAN Components*1PCS
C320 service cards ETGO(with 8 pcs EPON-OLT-SFPs)*1PCS
Cables
