Brand:YZ

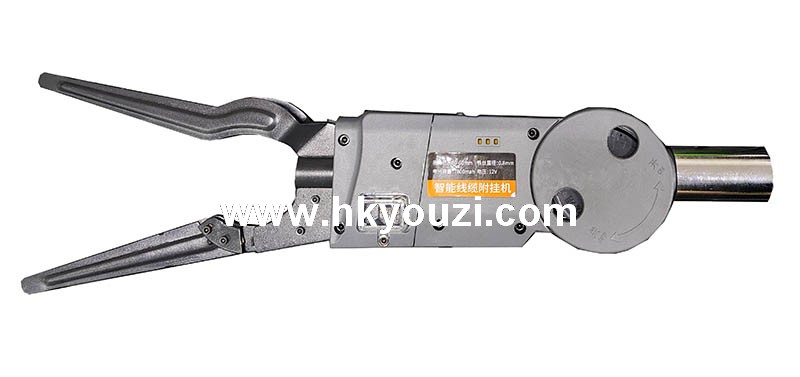

Module name:Intelligent Cable Lashing Machine
Model:YZ-001
Remote Control Automatic Aerial Cable Lashing Machine,
Intelligent Fiber Optic Cable Tying Machine for High Altitude Cable Bundling

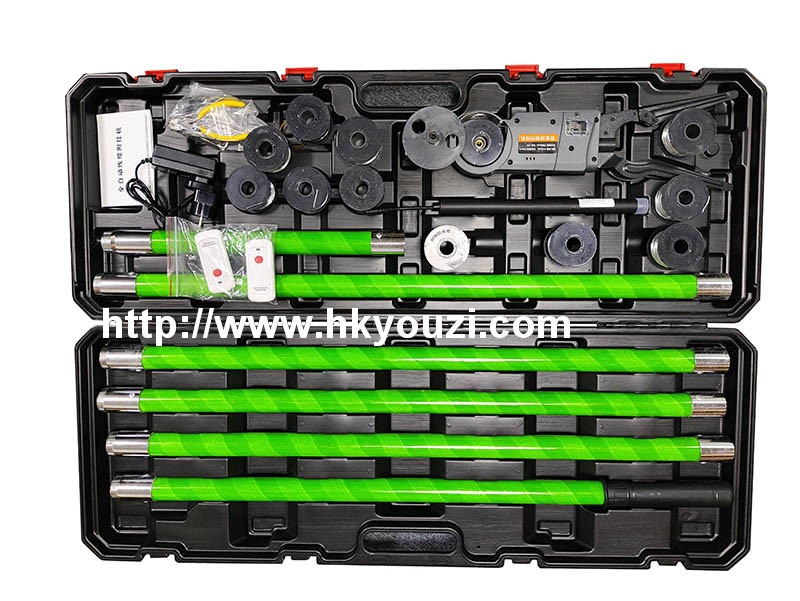

Accessory:
（1）Host machine*1pcs
（2）0.95m insulation rod*5pcs,0.5m insulation rod*1PCS
（3）Battery*2pcs
（4）Remote control*2pcs
（5）Hex Key Wrench*2pcs
（6）Charger*1pcs
（7）Instructions*1pcs
（8）Pliers*1pcs
（9）Packing box*1pcs
Technical Parameters：
Bundling range | 0-60mm |
Wire diameter | Galvanized iron wire 0.8mm |
Knotting turns | 1-3 turns |
Speed adjustment | Ten levels+Intelligent Adjustment |
Knotting success rate | 98% |
Rated voltage | 12V |
Extension rod | Withstand voltage 10Kv, 0.95m/pcs, the material is insulated fiberglass epoxy |
Battery Capacity | 15600mA/set (7800mA*2pcs), can work about 1400 times, about 4km or more |
Galvanized wire | 110m/coil, about 700-750mm at a time, about 2km or more |
Charge time | 2-3 hours |
Remote control | remote control distanc50 meters, can be used in partition wall |
Motor | China |
Charger | Normal |
Motherboard | 2.49 (highly resistant to interference) |
Dustproof isolation board | Yes |
Bearing | 11 national standard waterproof |
Shell material | Nylon 66 |
Machine height | The standard length is 5.8m |
Net weight | 8.5 kg |
Gross weight | 11kg |
Packing box size | 104*35*14cm |
