CATEGORY
Applications
- 10G Ethernet Passive Opitacal Access Network
- Fiber to the Home
- Fiber to the Building
- Fiber to the Curb
Features
- 3.3V and 5V DC power supply
- 3 Lambda
- SC receptacle optical connector
- Hot pluggable
- 2x15 XFP Electrical Interface
- Standards
- IEEE802.3ah PX-20D
- IEEE802.3av PRX-30D
- RoHS
Specifications
- Part Number: 033030400011
- MPN: LTH4301-PC+, SOEX6376-XSGB, XPP-XE-X3-CDFB-ZT

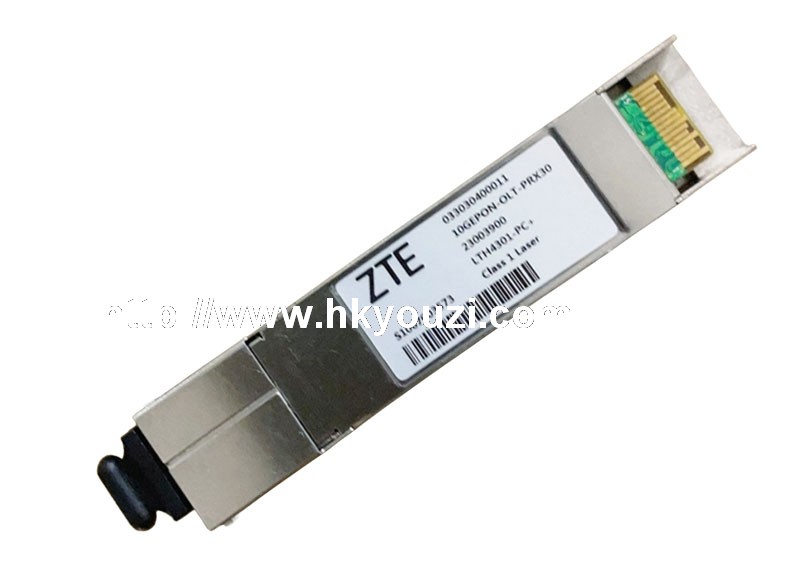

- Product Name: 10G EPON OLT
- Package: XFP
- Interface: SC
- Reach: 20km
- Operating Temperature: C
- Tx Output: 2~5dBm @ 10.3125Gb/s, 2~7dBm @ 1.25Gb/s
- Tx Rate: 10.3125Gb/s, 1.25Gb/s
- Tx Wavelength: 1577nm @ 10.3125Gb/s, 1490nm @ 1.25Gb/s
- Rx Input: -29.78dBm
- Rx Rate: 1.25Gb/s
- Rx Wavelength: 1310nm
