Features & Benefits:
- OTDR - OTDR single mode 22/20DB, test range 60 kilometers, SC/PC or FC/PC optical interface
- Optical link intelligent analysis - OTDR software can provide detailed test reports (Reflective Event, Reduce Event, Fiber Splitter, Fiber End)
- OPM - Optical power test range -50~+26dBm, six wavelength calibration
- VFL - red light output power 10mW
- Wire Mapping - Tests the faults of short circuits, open circuits, and cross in the LAN cables.
- Lamp - Provides reliable light source in dim working environments
- Rechargeable battery - battery standby time is greater than 11h, tested about 6h, battery capacity 4000mAh, charging Micro USB 5V/2A

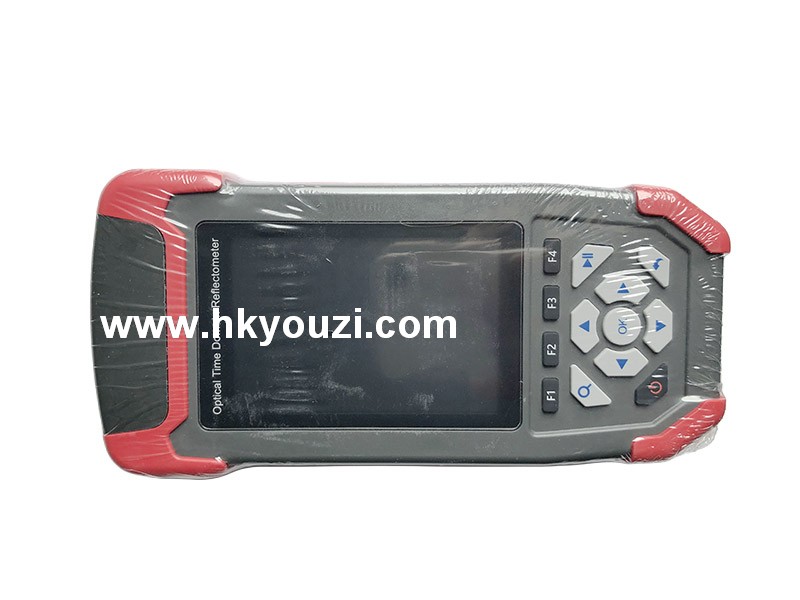

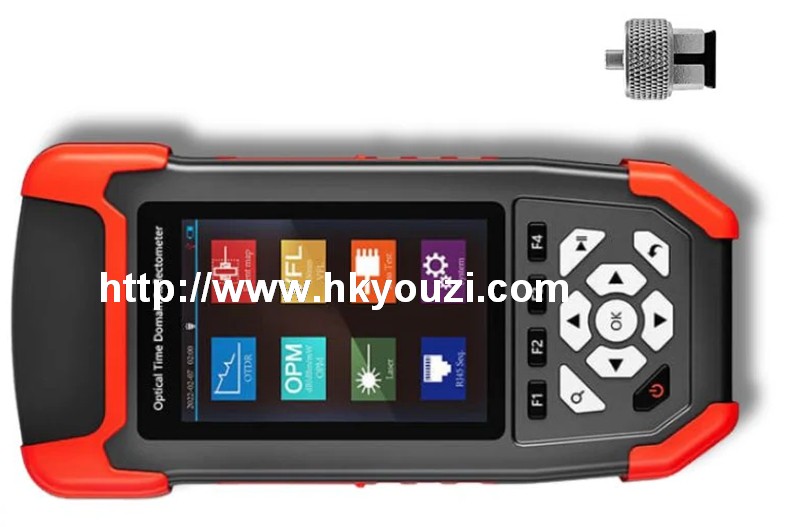

OTDR
- Wavelength: 1310/1550nm
- Fiber Type: G.652 SM Fiber
- Dynamic Range: 24dB/22dB
- Event Blind Zone : 10m
- ATT Blind Zone: 15m
- Test Range: 10m-60km
- Pulse Width: 5ns-10us
- Ranging Accuracy: 鍗(1m+Sampling Interval+0.005%xTest Distance)
- Loss Accuracy: 鍗 0.2dB/dB
- Sampling Points: 16k-128k
- Sampling Resolution: 0.05~8m
- Reflection Accuracy: 鍗3dB
- Data Storage: Internal: 2600: External: TF Card
- Laser Safety Level: Class Il level
- File Format: SOR Standard File Format
- Connector: FC/PC (Interchangeable SC閵嗕讣T)or FC/APC (Interchangeable SC, ST)
OPM
- Wave Range: 800nm-1700nm
- Interface Type: Universal Joint FC/SC/ST
- Test Range: -50dBm~+26dBm
- Uncertainty:+5%
- Frequency Identification: CW/270/330/1k/2kHz
- Calibration Wavelength: 850/1270/1300/1310/1490/1550/1577/1625nm
LS
- LD Type: FPLD
- Output Wavelength: 1310/1550nm
- Output Power: 2-5dBm
- Modulation Frequency: 270/330/1k/2kHz
- Stability: CW,+0.5dB/15min (Test after15mins of preheating)
- Connector: FC/PC (Interchangeable SCST) or FC/APC (lnterchangeable SC,ST)
VFL
- Work Wavelength: 650nm閸?0nm
- Output Power: 10mW
- Mode: CW/1Hz/2Hz
- Connector: FCISC/ST
Other Parameters
- Dispaly: 3.5 inch Color LCD
- Data Interface: Micro USB
- External Storage: TF Card
- Power Supply: Polymer Li-battery 3.7V, 4000mAh
- Power Adapter: 5VDC, 2A
- Battery Life: Standby>20h;
- Measuring Time: >12h
- Operating Temperature: -10鎺矯~+50鎺矯
- Storage Temperature: -40鎺矯~+70鎺矯
- Relative Humidity: 0~95%
- Non Condensing Dimension: 173mmx82mmx37mm
- Weight: 閳?50g
