Overview
| Item | Details |
|---|---|

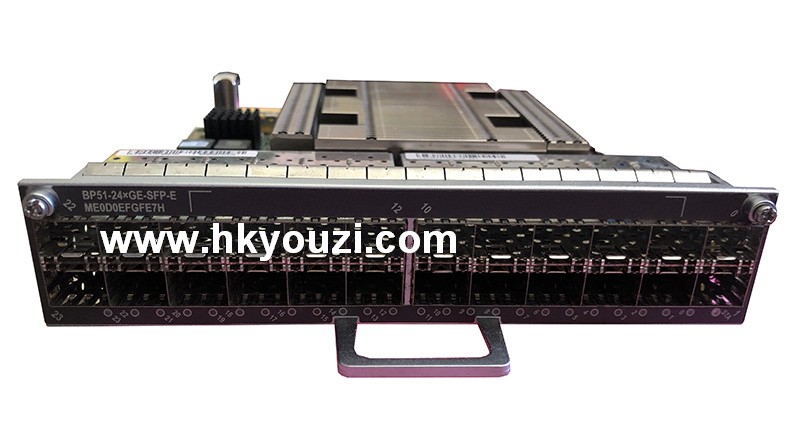

| Description | 24-Port 1000Base-X-SFP Flexible Card E(BP51-E) |
| Part Number | 03030PYN |
| Model | ME0D0EFGFE7H |
| Card type | Flexible Card |
| Silkscreen | BP51-24xGE-SFP-E |
Functions and Features
Functions and features of the ME0D0EFGFE7H
| Functions and Features | Description |
|---|---|
| Basic function | Provides twenty-four FE/GE interfaces for line-rate transmitting and receiving. |
| Reliability and availability | Hot swappable. |
| Restrictions and remarks | Synchronous Ethernet is not supported. |
| Breakout supported | No |
| Interface rate auto-sensing supported | No |
| FlexE supported | No |
| MACsec supported | No |
| Link protocol | - |
Technical Specifications
| Item | Specification |
|---|---|
| Dimensions without packaging (H x W x D) [mm(in.)] | 37.2 mm x 178.7 mm x 193.3 mm (1.46 in. x 7.04 in. x 7.61 in.) |
| Weight without packaging [kg(lb)] | 1.2 kg (2.65 lb) |
| Typical power consumption [W] | 55 W |
| Typical heat dissipation [BTU/hour] | 178.44 BTU/hour |
| Long-term operating temperature [°C(°F)] | 0°C to 45°C (32°F to 113°F) |
| Short-term operating temperature [°C(°F)] | 鈥5°C to +55°C (23°F to 131°F) |
