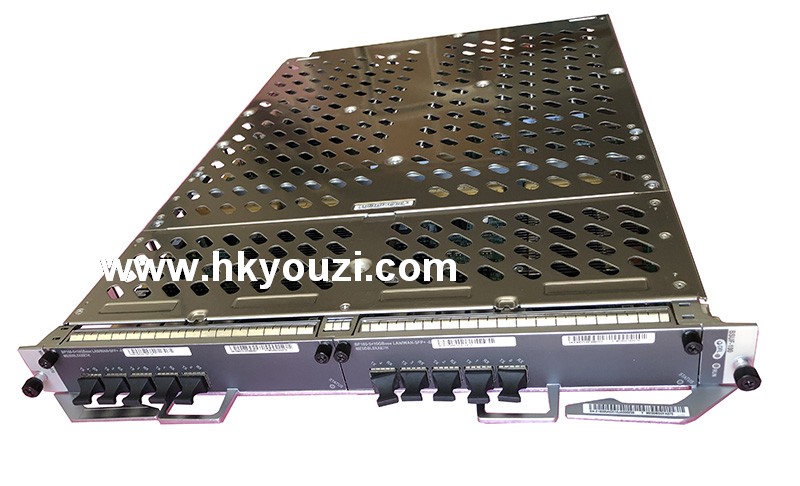

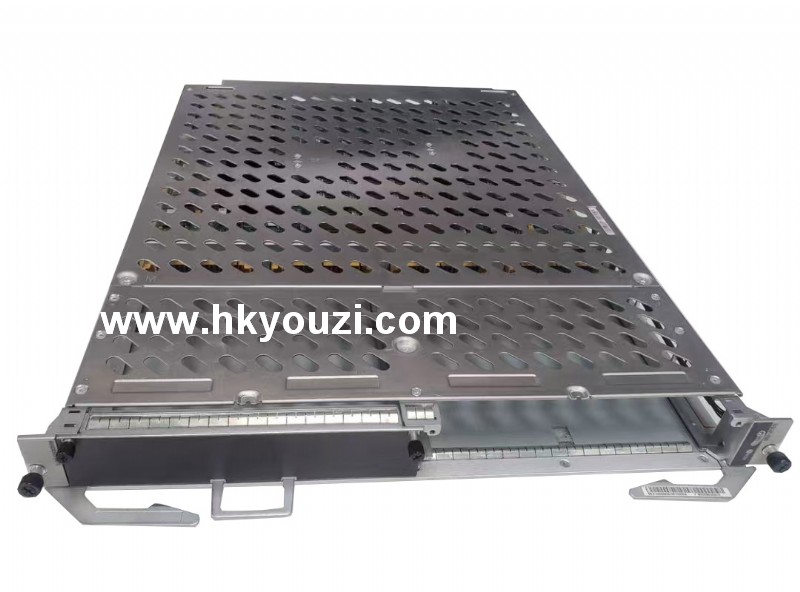

Brand:HUAWEI
Module name:Mother Flexible Board
Model:BSUF-100
Part Number:03054635
ME0DBSUFA070 (Flexible Card Broadband Service Unit(BSUF-100,2 sub-slots))
Overview
| Item | Details |
|---|---|
| Description | Flexible Card Broadband Service Unit(BSUF-100,2 sub-slots) |
| Part Number | 03054635 |
| Model | ME0DBSUFA070 |
| Card type | Mother Flexible Board |
| Silkscreen | BSUF-100 |
Functions and Features
| Functions and Features | Description |
|---|---|
| Basic function | Supports 100G line-rate processing of broadband services. |
| Reliability and availability | Hot swappable. |
| Restrictions and remarks | The compatible forwarding mode is supported, but the enhance forwarding mode is not supported. |
| Link protocol | - |
Technical Specifications
| Item | Specification |
|---|---|
| Dimensions without packaging (H x W x D) [mm(in.)] | 40.1 mm x 399.2 mm x 535.6 mm (1.58 in. x 15.72 in. x 21.09 in.) |
| Weight without packaging [kg(lb)] | 7.2 kg (15.87 lb) |
| Typical power consumption [W] | 150.2 W |
| Typical heat dissipation [BTU/hour] | 487.31 BTU/hour |
| Long-term operating temperature [掳C(掳F)] | 0掳C to 45掳C (32掳F to 113掳F) |
| Short-term operating temperature [掳C(掳F)] | 锟紺5掳C to +55掳C (23掳F to 131掳F) |
