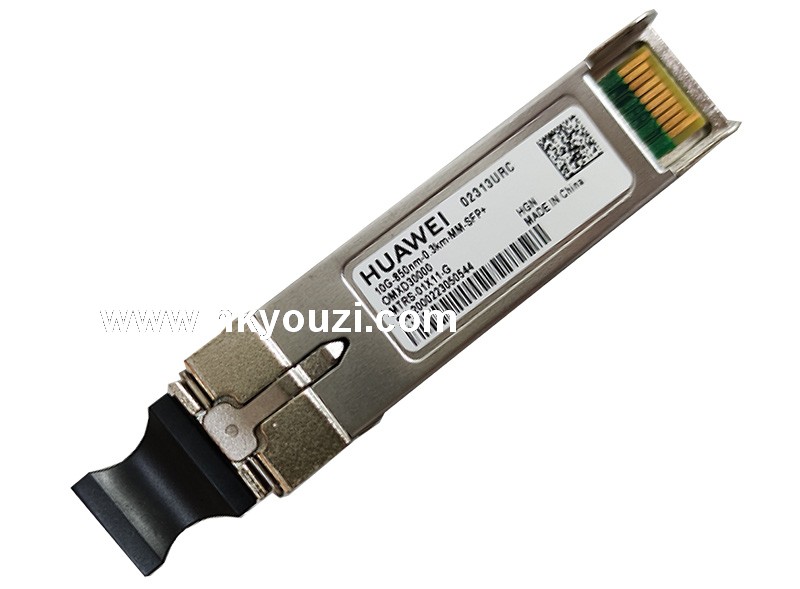

OMXD30000 (02313URC)
OMXD30000 specifications
| Item | Value |
|---|---|
| Basic Information | |
| Module name | OMXD30000 |
| Part Number | 02313URC |
| Model | OMXD30000 |
| Form factor | SFP+ |
| Application standard | 10GBASE-SR |
| Connector type | LC |
| Optical fiber type | MMF |
| Working case temperature [°C(°F)] | 0°C to 70°C (32°F to 158°F) |
| Transmission rate [bit/s] | 10 Gbit/s |
| Target transmission distance [km] | Multimode fiber (with modal bandwidth of 160 MHz*km and diameter of 62.5 渭m): 0.026 km Multimode fiber (OM1): 0.033 km Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 渭m): 0.066 km Multimode fiber (OM2): 0.082 km Multimode fiber (OM3): 0.3 km Multimode fiber (OM4): 0.4 km |
| Transmitter Optical Characteristics | |
| Center wavelength [nm] | 850 nm |
| Maximum Tx optical power [dBm] | -1.0 dBm |
| Minimum Tx optical power [dBm] | -7.3 dBm |
| Minimum extinction ratio [dB] | 3.0 dB |
| Receiver Optical Characteristics | |
| Rx sensitivity [dBm] | -11.1 dBm |
| Overload power [dBm] | -1.0 dBm |
