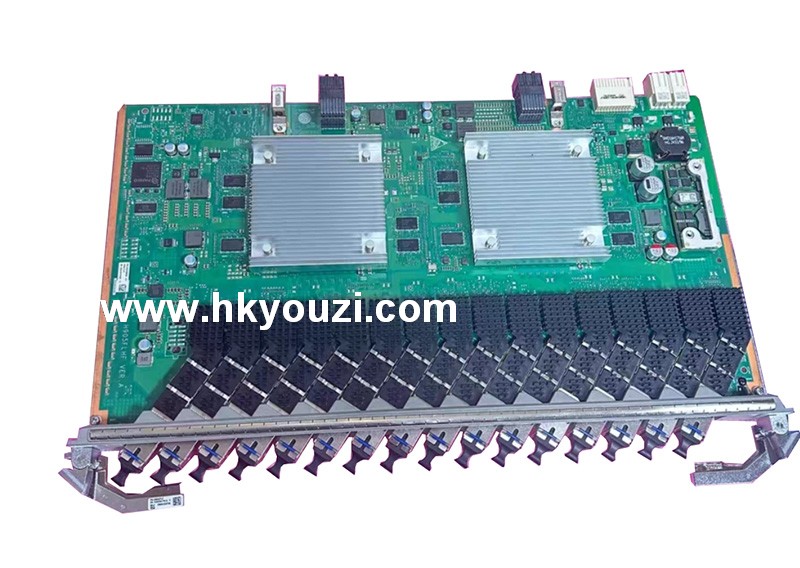

| Brand | Huawei |
| Model | CGHF |
| GPON Port | 16 XG-PON & GPON ports |

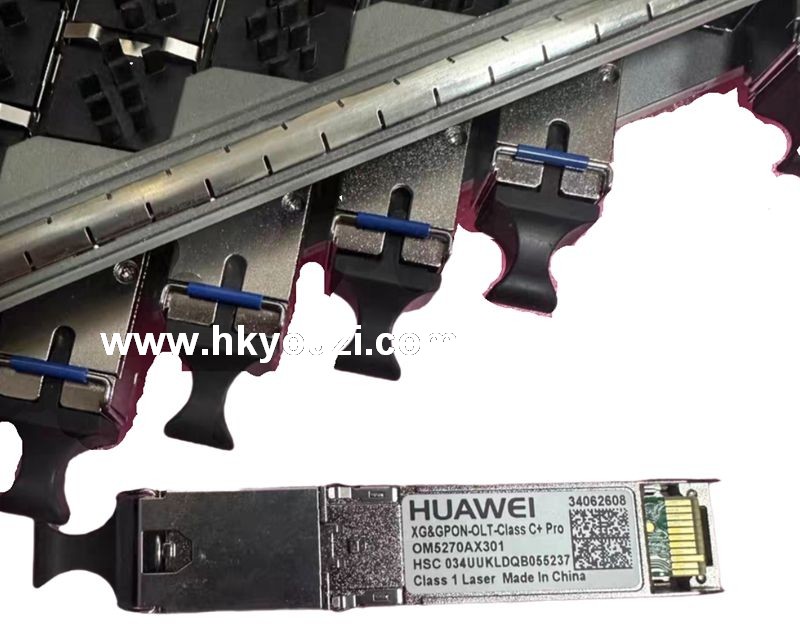

| Type | One-fiber bi-directional optical module |
| Operating Wavelength | GPON channel: |
| Tx: 1490 nm |
| Rx: 1310 nm |
| XG-PON channel: |
| Tx: 1577 nm |
| Rx: 1270 nm |
| Encapsulation Type | SFP+ |
| Port Rate | GPON channel: |
| Tx: 2.488 Gbit/s |
| Rx: 1.244 Gbit/s |
| XG-PON channel: |
| Tx: 9.953 Gbit/s |
| Rx: 2.488 Gbit/s |
| Minimum Output Optical Power | GPON channel: 3 dBm |
| XG-PON channel: 4 dBm |
| Maximum Output Optical Power | GPON channel: 7 dBm |
| XG-PON channel: 8 dBm |
| Maximum Receiver Sensitivity | GPON channel: -32 dBm |
| XG-PON channel: -29.5 dBm |
| Optical Connector Type | SC |
| Optical Fiber Type | Single-mode |
| Overload Optical Power | GPON channel: -12 dBm |
| XG-PON channel: -9 dBm |
| Extinction Ratio | 8.2 dB |
| Forwarding capability | 200 Gbit/s |
| Rate mode | Asymmetric rate |
| T-CONTs per PON port | GPON: 1024 |
| XG-PON: 2048 |
| Service flows per PON board | 16352 |
| Maximum frame size | 2052 bytes |
| 9216 bytes (jumbo frame enabled) |
| Maximum number of MAC addresses | 131072 |
| Maximum distance difference between | 40 km |
| two ONUs under the same PON port |
| Dimensions (W x D x H) | 23.30 mm * 257.90 mm * 399.20 mm |
| Power Consumption | Static: 48 W |
| Maximum: 106 W |
| Operating temperature | -40°C to +65°C |
