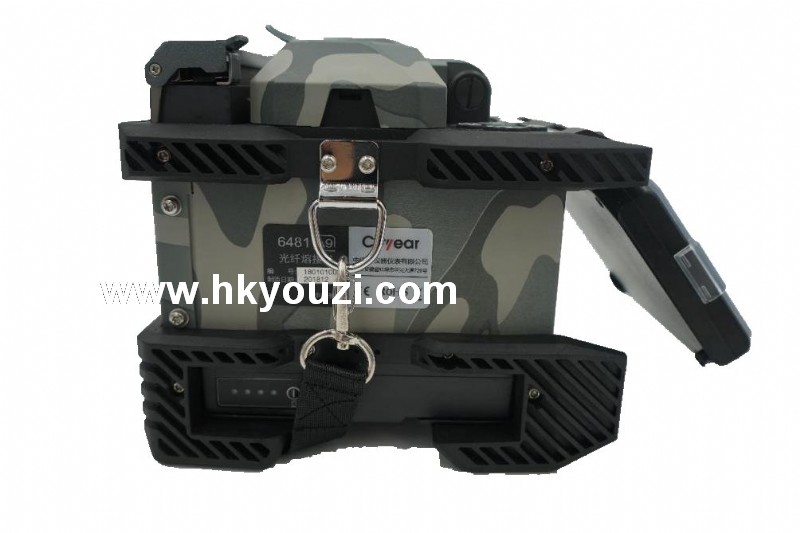

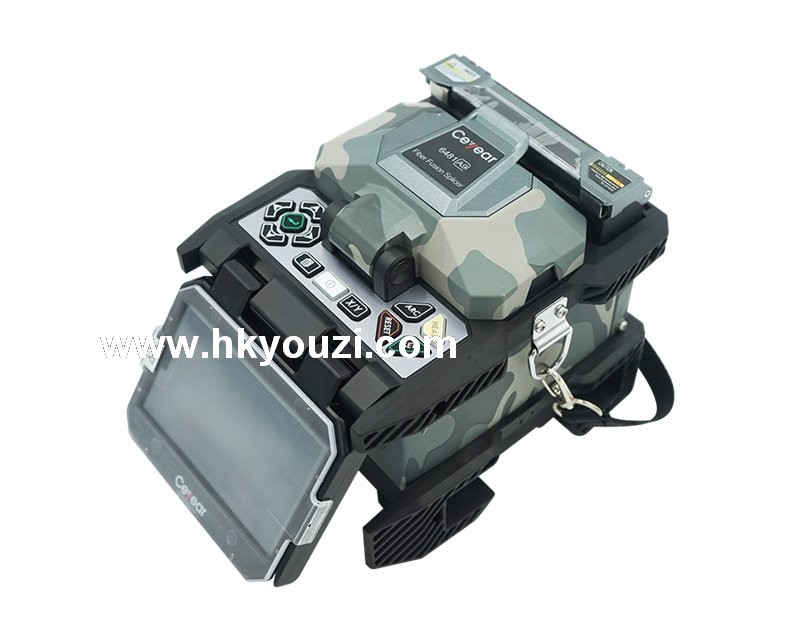

6481A9 6 Motors Fusion Machine Splicer Brand New Welding Equipment 7s Cable Splicing Fiber Optical Cable Splicing Machine
Motor qty. | 6 |
Alignment method | Cladding alignment, Core alignment |
Applicable fibers | Any common optical fibers, rubber-insulated fibers and jumpers that meet require ments of ITU-TG.651~653, ITU-TG.655 and ITU-TG.657. |
Optical fiber diameter | Cladding: 80锝150渭m, coating layer: 0.1锝3mm |
Cleave length | 5锝16mm (coated optical fiber diameter 鈮250渭m); 10mm (coated optical fiber diameter: 0.25~3mm) |
Splice loss (typical) | 0.02dB (SMF); 0.01dB (MMF); 0.04dB (DSF); 0.04dB (NZDSF) |
Return loss | Better than 60dB |
Splicing time (typical) | 7s (Fast mode) |
Heating time (typical) | 18s (60mm protection sleeve) |
Tension | 1.96锝2.25N |
Protection sleeve | 60mm, 40mm and a series of protection sleeves |
Graphical display | High-performance 4.3 inch LCD |
Magnification time | 320 times/88 times, 700 times |
Fusion records | 10000 groups/64 images |
Battery capacity | 11.1V, 6800mAh |
Battery operating life | Cycle charging: 300锝500 counts, can be replaced by customers |
Electrode operating life | Typical: 4000 counts, can be replaced by customers |
Construction lighting | Built-in lights with high-brightness and wide lighting area |
Working environment | Temp:-10锝50鈩; Hum: 0锝95%RH, height above sea level: 0锝6000m |
Operation interfaces | GUI |
External power | AC: 100锝240V, 60Hz, 0锝1.5A; DC: 10锝15V |
Port | USB / SD |
Dimensions | 120mm (W)×130mm (H)×154mm (D) (without rubber anti-vibration pad) |
Weight | 1.8kg (no battery), 2.1kg (with battery) |
