Brand:YZ

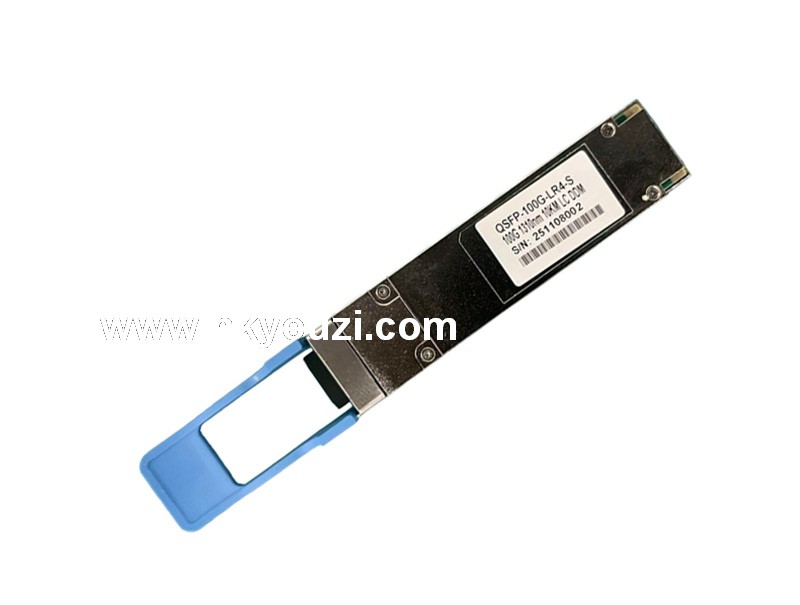

Module name:Optic Transceiver
Model:QSFP28-100G-LR4-S
100G QSFP28 LR4 Transceiver, SMF, 10km
Description
<span style="color: rgb(51, 51, 51); font-size: 14.4px; background-color: rgb(255, 255, 255);">Features</span><div style="box-sizing: border-box; color: rgb(51, 51, 51); font-size: 14.4px; background-color: rgb(255, 255, 255);">鈼 Duplex LC receptacle optical interface</div><div style="box-sizing: border-box; color: rgb(51, 51, 51); font-size: 14.4px; background-color: rgb(255, 255, 255);">鈼 Single +3.3V power supply</div><div style="box-sizing: border-box; color: rgb(51, 51, 51); font-size: 14.4px; background-color: rgb(255, 255, 255);">鈼 Hot-pluggable QSFP28 MSA form factor</div><div style="box-sizing: border-box; color: rgb(51, 51, 51); font-size: 14.4px; background-color: rgb(255, 255, 255);">鈼 4x25G Electrical Serial Interface</div><div style="box-sizing: border-box; color: rgb(51, 51, 51); font-size: 14.4px; background-color: rgb(255, 255, 255);">鈼 Compliant with 4x28G(CEI-28G-VSR)</div><div style="box-sizing: border-box; color: rgb(51, 51, 51); font-size: 14.4px; background-color: rgb(255, 255, 255);">鈼 AC coupling of CML signals</div><div style="box-sizing: border-box; color: rgb(51, 51, 51); font-size: 14.4px; background-color: rgb(255, 255, 255);">鈼 Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)</div><div style="box-sizing: border-box; color: rgb(51, 51, 51); font-size: 14.4px; background-color: rgb(255, 255, 255);">鈼 Receiver: 4x25Gb/s PIN ROSA</div><div style="box-sizing: border-box; color: rgb(51, 51, 51); font-size: 14.4px; background-color: rgb(255, 255, 255);">鈼 Low power dissipation(Max:6W)</div><div style="box-sizing: border-box; color: rgb(51, 51, 51); font-size: 14.4px; background-color: rgb(255, 255, 255);">鈼 Built in digital diagnostic function</div><div style="box-sizing: border-box; color: rgb(51, 51, 51); font-size: 14.4px; background-color: rgb(255, 255, 255);">鈼 Operating case temperature range:0鈩 to 70鈩</div><div style="box-sizing: border-box; color: rgb(51, 51, 51); font-size: 14.4px; background-color: rgb(255, 255, 255);">鈼 Compliant with 100GBASE-LR4</div><div style="box-sizing: border-box; color: rgb(51, 51, 51); font-size: 14.4px; background-color: rgb(255, 255, 255);">鈼 I2C Communication Interface Applications</div><div style="box-sizing: border-box; color: rgb(51, 51, 51); font-size: 14.4px; background-color: rgb(255, 255, 255);">鈼 100GBASE-LR4</div><div style="box-sizing: border-box; color: rgb(51, 51, 51); font-size: 14.4px; background-color: rgb(255, 255, 255);">鈼 Infiniband QDR and DDR interconnects</div><div style="box-sizing: border-box; color: rgb(51, 51, 51); font-size: 14.4px; background-color: rgb(255, 255, 255);">鈼 100G Datacom connections</div><div style="box-sizing: border-box; color: rgb(51, 51, 51); font-size: 14.4px; background-color: rgb(255, 255, 255);">Description</div><div style="box-sizing: border-box; color: rgb(51, 51, 51); font-size: 14.4px; background-color: rgb(255, 255, 255);">100G QSFP28 LR4 optical transceiver integrates the transmit and receive path onto one module. On the transmit side, four lanes of serial data streams are recovered, retimed,and passed on to four laser drivers, which control four electric-absorption modulated lasers (EMLs) with 1296, 1300, 1305, and 1309 nm center wavelengths. The optical signals are then multiplexed into a single-mode fiber through an industry-standard LC connector.On the receive side, four lanes of optical data streams are optically demultiplexed by an integrated optical demultiplexer. Each data steam is recovered by a PIN photodetector and transimpedance amplifier, retimed, and passed on to an output driver. This module features a hot-pluggable electrical interface, low power consumption, and 2-wire serial interf</div>
