Brand:HUAWEI
Module name:Optic Transceivers
Model:SFP-10G-SR-MP
Part Number:02313AMY

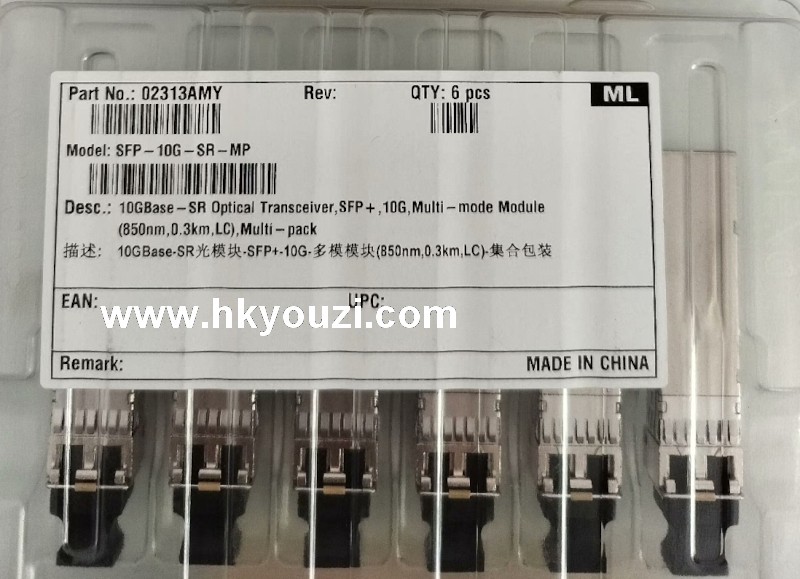

Huawei SFP-10G-SR-MP PN:02313AMY
10GBase- SR Optical Transceiver,SFP +,10G,Multi -mode Module(850nm,0.3km,LC),Multi - pack

Teams Email

Description

<h2 class="idp-ltr-html-topictitle2" style="box-sizing: border-box; margin: 25px 0px 10px; font-size: 1.5em; font-family: "LT_Bold,Arial"; color: rgb(51, 51, 51); background-color: rgb(255, 255, 255);">SFP-10G-SR-MP</h2><div class="idp-ltr-html-topicbody" style="box-sizing: border-box; color: rgb(73, 73, 73); font-family: LT_regular, Arial; font-size: 14px; background-color: rgb(255, 255, 255);"><div class="idp-ltr-html-tablenoborder" style="box-sizing: border-box; margin: 25px 0px 10px; overflow: auto;"><span class="idp-ltr-html-tablecap" style="box-sizing: border-box;">SFP-10G-SR-MP specifications</span><table cellpadding="4" cellspacing="0" summary="" class="idp-ltr-html-tb-normal" id="EN-US_CONCEPT_0316169488__tabled0e43186" frame="border" border="1" rules="all" style="border-collapse: collapse; margin: 8px 0px 15px; table-layout: fixed; overflow-wrap: break-word; word-break: normal; border-color: rgb(104, 104, 104);"><thead align="left" style="box-sizing: border-box; font-size: 14px; font-weight: bold;"><tr style="box-sizing: border-box;"><th class="idp-ltr-html-cellrowborder" valign="top" width="50%" id="mcps1.6.10.10.24.3.1.2.3.1.1" style="box-sizing: content-box; text-align: -webkit-match-parent; background-color: rgb(207, 207, 207); padding-left: 16px; padding-right: 16px; color: rgb(51, 51, 51);"><strong style="box-sizing: border-box; font-weight: bold;">Item</strong></th><th class="idp-ltr-html-cellrowborder" valign="top" width="50%" id="mcps1.6.10.10.24.3.1.2.3.1.2" style="box-sizing: content-box; text-align: -webkit-match-parent; background-color: rgb(207, 207, 207); padding-left: 16px; padding-right: 16px; color: rgb(51, 51, 51);"><strong style="box-sizing: border-box; font-weight: bold;">Value</strong></th></tr></thead><tbody style="box-sizing: border-box; font-size: 14px;"><tr style="box-sizing: border-box;"><td class="idp-ltr-html-cellrowborder" colspan="2" valign="top" headers="mcps1.6.10.10.24.3.1.2.3.1.1 mcps1.6.10.10.24.3.1.2.3.1.2 " style="box-sizing: border-box; padding: 8px 16px;"><strong style="box-sizing: border-box; font-weight: bold;">Basic Information</strong></td></tr><tr style="box-sizing: border-box;"><td class="idp-ltr-html-cellrowborder" valign="top" width="50%" headers="mcps1.6.10.10.24.3.1.2.3.1.1 " style="box-sizing: border-box; padding: 8px 16px;">Module name</td><td class="idp-ltr-html-cellrowborder" valign="top" width="50%" headers="mcps1.6.10.10.24.3.1.2.3.1.2 " style="box-sizing: border-box; padding: 8px 16px;">SFP-10G-SR-MP</td></tr><tr style="box-sizing: border-box;"><td class="idp-ltr-html-cellrowborder" valign="top" width="50%" headers="mcps1.6.10.10.24.3.1.2.3.1.1 " style="box-sizing: border-box; padding: 8px 16px;">Part Number</td><td class="idp-ltr-html-cellrowborder" valign="top" width="50%" headers="mcps1.6.10.10.24.3.1.2.3.1.2 " style="box-sizing: border-box; padding: 8px 16px;">02313AMY</td></tr><tr style="box-sizing: border-box;"><td class="idp-ltr-html-cellrowborder" valign="top" width="50%" headers="mcps1.6.10.10.24.3.1.2.3.1.1 " style="box-sizing: border-box; padding: 8px 16px;">Model</td><td class="idp-ltr-html-cellrowborder" valign="top" width="50%" headers="mcps1.6.10.10.24.3.1.2.3.1.2 " style="box-sizing: border-box; padding: 8px 16px;">SFP-10G-SR-MP</td></tr><tr style="box-sizing: border-box;"><td class="idp-ltr-html-cellrowborder" valign="top" width="50%" headers="mcps1.6.10.10.24.3.1.2.3.1.1 " style="box-sizing: border-box; padding: 8px 16px;">Form factor</td><td class="idp-ltr-html-cellrowborder" valign="top" width="50%" headers="mcps1.6.10.10.24.3.1.2.3.1.2 " style="box-sizing: border-box; padding: 8px 16px;">SFP+</td></tr><tr style="box-sizing: border-box;"><td class="idp-ltr-html-cellrowborder" valign="top" width="50%" headers="mcps1.6.10.10.24.3.1.2.3.1.1 " style="box-sizing: border-box; padding: 8px 16px;">Optical port standard/type</td><td class="idp-ltr-html-cellrowborder" valign="top" width="50%" headers="mcps1.6.10.10.24.3.1.2.3.1.2 " style="box-sizing: border-box; padding: 8px 16px;">10GBASE-SR</td></tr><tr style="box-sizing: border-box;"><td class="idp-ltr-html-cellrowborder" valign="top" width="50%" headers="mcps1.6.10.10.24.3.1.2.3.1.1 " style="box-sizing: border-box; padding: 8px 16px;">Connector type</td><td class="idp-ltr-html-cellrowborder" valign="top" width="50%" headers="mcps1.6.10.10.24.3.1.2.3.1.2 " style="box-sizing: border-box; padding: 8px 16px;">LC/DLC</td></tr><tr style="box-sizing: border-box;"><td class="idp-ltr-html-cellrowborder" valign="top" width="50%" headers="mcps1.6.10.10.24.3.1.2.3.1.1 " style="box-sizing: border-box; padding: 8px 16px;">Optical fiber type</td><td class="idp-ltr-html-cellrowborder" valign="top" width="50%" headers="mcps1.6.10.10.24.3.1.2.3.1.2 " style="box-sizing: border-box; padding: 8px 16px;">MMF</td></tr><tr style="box-sizing: border-box;"><td class="idp-ltr-html-cellrowborder" valign="top" width="50%" headers="mcps1.6.10.10.24.3.1.2.3.1.1 " style="box-sizing: border-box; padding: 8px 16px;">Type of the end face of the ceramic ferrule on optical ports</td><td class="idp-ltr-html-cellrowborder" valign="top" width="50%" headers="mcps1.6.10.10.24.3.1.2.3.1.2 " style="box-sizing: border-box; padding: 8px 16px;">PC or UPC</td></tr><tr style="box-sizing: border-box;"><td class="idp-ltr-html-cellrowborder" valign="top" width="50%" headers="mcps1.6.10.10.24.3.1.2.3.1.1 " style="box-sizing: border-box; padding: 8px 16px;">Working case temperature [°C (°F)]</td><td class="idp-ltr-html-cellrowborder" valign="top" width="50%" headers="mcps1.6.10.10.24.3.1.2.3.1.2 " style="box-sizing: border-box; padding: 8px 16px;">0°C to 70°C (32°F to 158°F)</td></tr><tr style="box-sizing: border-box;"><td class="idp-ltr-html-cellrowborder" valign="top" width="50%" headers="mcps1.6.10.10.24.3.1.2.3.1.1 " style="box-sizing: border-box; padding: 8px 16px;">Transmission rate [bit/s]</td><td class="idp-ltr-html-cellrowborder" valign="top" width="50%" headers="mcps1.6.10.10.24.3.1.2.3.1.2 " style="box-sizing: border-box; padding: 8px 16px;">10Gbit/s</td></tr><tr style="box-sizing: border-box;"><td class="idp-ltr-html-cellrowborder" valign="top" width="50%" headers="mcps1.6.10.10.24.3.1.2.3.1.1 " style="box-sizing: border-box; padding: 8px 16px;">Target transmission distance [km]</td><td class="idp-ltr-html-cellrowborder" valign="top" width="50%" headers="mcps1.6.10.10.24.3.1.2.3.1.2 " style="box-sizing: border-box; padding: 8px 16px;"><p style="box-sizing: border-box; margin: 0.2em 0px; font-size: 14px; overflow-wrap: break-word; word-break: normal;">Multimode fiber (with diameter of 62.5 μm): 26 m</p><p style="box-sizing: border-box; margin: 0.2em 0px; font-size: 14px; overflow-wrap: break-word; word-break: normal;">Multimode fiber (OM1) (with diameter of 62.5 μm): 33 m</p><p style="box-sizing: border-box; margin: 0.2em 0px; font-size: 14px; overflow-wrap: break-word; word-break: normal;">Multimode fiber (with diameter of 50 μm): 66 m</p><p style="box-sizing: border-box; margin: 0.2em 0px; font-size: 14px; overflow-wrap: break-word; word-break: normal;">Multimode fiber (OM2) (with diameter of 50 μm): 82 m</p><p style="box-sizing: border-box; margin: 0.2em 0px; font-size: 14px; overflow-wrap: break-word; word-break: normal;">Multimode fiber (OM3) (with diameter of 50 μm): 300 m</p><p style="box-sizing: border-box; margin: 0.2em 0px; font-size: 14px; overflow-wrap: break-word; word-break: normal;">Multimode fiber (OM4) (with diameter of 50 μm): 400 m</p></td></tr><tr style="box-sizing: border-box;"><td class="idp-ltr-html-cellrowborder" valign="top" width="50%" headers="mcps1.6.10.10.24.3.1.2.3.1.1 " style="box-sizing: border-box; padding: 8px 16px;">Modal bandwidth [MHz*km]</td><td class="idp-ltr-html-cellrowborder" valign="top" width="50%" headers="mcps1.6.10.10.24.3.1.2.3.1.2 " style="box-sizing: border-box; padding: 8px 16px;"><p style="box-sizing: border-box; margin: 0.2em 0px; font-size: 14px; overflow-wrap: break-word; word-break: normal;">Multimode fiber: 160 MHz*km</p><p style="box-sizing: border-box; margin: 0.2em 0px; font-size: 14px; overflow-wrap: break-word; word-break: normal;">Multimode fiber (OM1): 200 MHz*km</p><p style="box-sizing: border-box; margin: 0.2em 0px; font-size: 14px; overflow-wrap: break-word; word-break: normal;">Multimode fiber: 400 MHz*km</p><p style="box-sizing: border-box; margin: 0.2em 0px; font-size: 14px; overflow-wrap: break-word; word-break: normal;">Multimode fiber (OM2): 500 MHz*km</p><p style="box-sizing: border-box; margin: 0.2em 0px; font-size: 14px; overflow-wrap: break-word; word-break: normal;">Multimode fiber (OM3): 2000 MHz*km</p><p style="box-sizing: border-box; margin: 0.2em 0px; font-size: 14px; overflow-wrap: break-word; word-break: normal;">Multimode fiber (OM4): 4700 MHz*km</p></td></tr><tr style="box-sizing: border-box;"><td class="idp-ltr-html-cellrowborder" colspan="2" valign="top" headers="mcps1.6.10.10.24.3.1.2.3.1.1 mcps1.6.10.10.24.3.1.2.3.1.2 " style="box-sizing: border-box; padding: 8px 16px;"><strong style="box-sizing: border-box; font-weight: bold;">Transmitter Optical Characteristics</strong></td></tr><tr style="box-sizing: border-box;"><td class="idp-ltr-html-cellrowborder" valign="top" width="50%" headers="mcps1.6.10.10.24.3.1.2.3.1.1 " style="box-sizing: border-box; padding: 8px 16px;">Center wavelength [nm]</td><td class="idp-ltr-html-cellrowborder" valign="top" width="50%" headers="mcps1.6.10.10.24.3.1.2.3.1.2 " style="box-sizing: border-box; padding: 8px 16px;">850 nm</td></tr><tr style="box-sizing: border-box;"><td class="idp-ltr-html-cellrowborder" valign="top" width="50%" headers="mcps1.6.10.10.24.3.1.2.3.1.1 " style="box-sizing: border-box; padding: 8px 16px;">Maximum Tx optical power (AVG) [dBm]</td><td class="idp-ltr-html-cellrowborder" valign="top" width="50%" headers="mcps1.6.10.10.24.3.1.2.3.1.2 " style="box-sizing: border-box; padding: 8px 16px;">-1.0 dBm</td></tr><tr style="box-sizing: border-box;"><td class="idp-ltr-html-cellrowborder" valign="top" width="50%" headers="mcps1.6.10.10.24.3.1.2.3.1.1 " style="box-sizing: border-box; padding: 8px 16px;">Minimum Tx optical power (AVG) [dBm]</td><td class="idp-ltr-html-cellrowborder" valign="top" width="50%" headers="mcps1.6.10.10.24.3.1.2.3.1.2 " style="box-sizing: border-box; padding: 8px 16px;">-7.3 dBm</td></tr><tr style="box-sizing: border-box;"><td class="idp-ltr-html-cellrowborder" valign="top" width="50%" headers="mcps1.6.10.10.24.3.1.2.3.1.1 " style="box-sizing: border-box; padding: 8px 16px;">Minimum extinction ratio [dB]</td><td class="idp-ltr-html-cellrowborder" valign="top" width="50%" headers="mcps1.6.10.10.24.3.1.2.3.1.2 " style="box-sizing: border-box; padding: 8px 16px;">3.0 dB</td></tr><tr style="box-sizing: border-box;"><td class="idp-ltr-html-cellrowborder" colspan="2" valign="top" headers="mcps1.6.10.10.24.3.1.2.3.1.1 mcps1.6.10.10.24.3.1.2.3.1.2 " style="box-sizing: border-box; padding: 8px 16px;"><strong style="box-sizing: border-box; font-weight: bold;">Receiver Optical Characteristics</strong></td></tr><tr style="box-sizing: border-box;"><td class="idp-ltr-html-cellrowborder" valign="top" width="50%" headers="mcps1.6.10.10.24.3.1.2.3.1.1 " style="box-sizing: border-box; padding: 8px 16px;">Rx sensitivity (OMA) [dBm]</td><td class="idp-ltr-html-cellrowborder" valign="top" width="50%" headers="mcps1.6.10.10.24.3.1.2.3.1.2 " style="box-sizing: border-box; padding: 8px 16px;">-11.1 dBm</td></tr><tr style="box-sizing: border-box;"><td class="idp-ltr-html-cellrowborder" valign="top" width="50%" headers="mcps1.6.10.10.24.3.1.2.3.1.1 " style="box-sizing: border-box; padding: 8px 16px;">Overload power (AVG) [dBm]</td><td class="idp-ltr-html-cellrowborder" valign="top" width="50%" headers="mcps1.6.10.10.24.3.1.2.3.1.2 " style="box-sizing: border-box; padding: 8px 16px;">-1.0 dBm</td></tr><tr style="box-sizing: border-box;"><td class="idp-ltr-html-cellrowborder" colspan="2" valign="top" headers="mcps1.6.10.10.24.3.1.2.3.1.1 mcps1.6.10.10.24.3.1.2.3.1.2 " style="box-sizing: border-box; padding: 8px 16px;"><strong style="box-sizing: border-box; font-weight: bold;">Functions and Features</strong></td></tr><tr style="box-sizing: border-box;"><td class="idp-ltr-html-cellrowborder" valign="top" width="50%" headers="mcps1.6.10.10.24.3.1.2.3.1.1 " style="box-sizing: border-box; padding: 8px 16px;">DDM options</td><td class="idp-ltr-html-cellrowborder" valign="top" width="50%" headers="mcps1.6.10.10.24.3.1.2.3.1.2 " style="box-sizing: border-box; padding: 8px 16px;">Supported</td></tr></tbody></table></div></div>
