Brand:ZTE
Module name:Power Distribution
Model:DCPD-10B

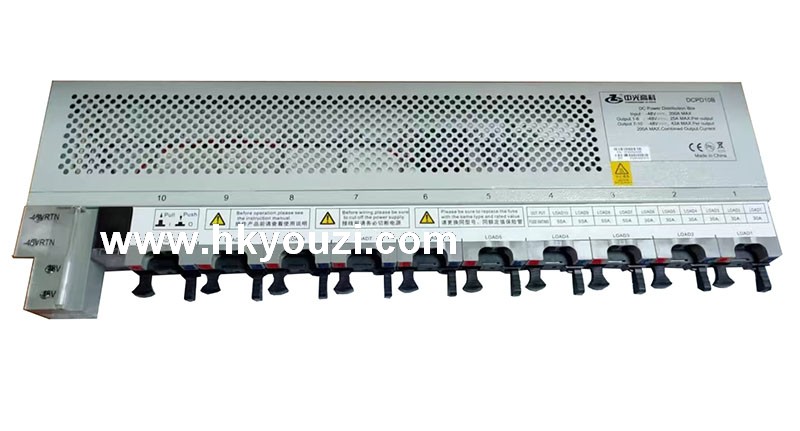

DC Power Distributor 10B(DCPD10B)
input: 48V/200A
Description
<div>Product Overview</div><div>DC Power Distributor 10B (DCPD10B) has the following functions:</div><div>1)Provides two channels of -48v Dc power input with a total current of no more than 200A</div><div>2)Provides six channels of DC power output, each of which is controlled by an independenfuse to support a rated current of 25A;</div><div>3)Provides four channels of DC power output, each of which is controlled by an independentfuse to support a rated current of 42A:</div><div>4)Provides lightning protection and surge protection for the power output through a built-inlightning protection board.</div><div><div>ltem Specifications</div><div>model DC Power Distributor 10B(DCPD10B)</div><div>input -48V DC, two channels with a total current no more than 200A</div><div><br></div><div>output -48V DC </div><div> 6 channels of rated current 25A, with llghtning protection</div><div> 4 channels of rated current 42A. with lightning protection</div><div><br></div><div>Installation environment indoor 19-inch cabinet installatlon, with front wiring</div><div><br></div><div>Dimension (W x H x D) 482.6 mm x 44 mm x 85 mm (With slde frame)</div><div> 442 mm x 22 mm x 85 mm (Without side frame)</div><div><br></div><div>Welght 1.8kg</div><div><br></div><div>Surge 10KA (8,20us) for wire-wire connections</div><div> 20KA (8/20us) for wire-earth connectilons</div><div><br></div><div>Waterproofdustproot level IP20</div><div><br></div><div><br></div><div><br></div></div>
