鈼 Duplex LC receptacle optical interface
鈼 Single +3.3V power supply
鈼 Hot-pluggable QSFP28 MSA form factor
鈼 4x25G Electrical Serial Interface
鈼 Compliant with 4x28G(CEI-28G-VSR)
鈼 AC coupling of CML signals
鈼 Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)
鈼 Receiver: 4x25Gb/s PIN ROSA
鈼 Low power dissipation(Max:6W)
鈼 Built in digital diagnostic function
鈼 Operating case temperature range:0鈩 to 70鈩
鈼 Compliant with 100GBASE-LR4
鈼 I2C Communication Interface
Applications
鈼 100GBASE-LR4
鈼 Infiniband QDR and DDR interconnects
鈼 100G Datacom connections
Description

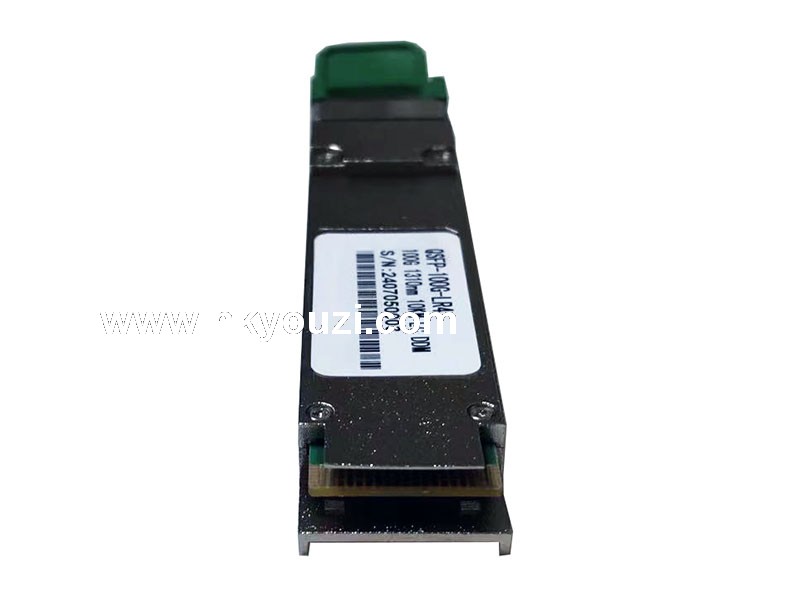

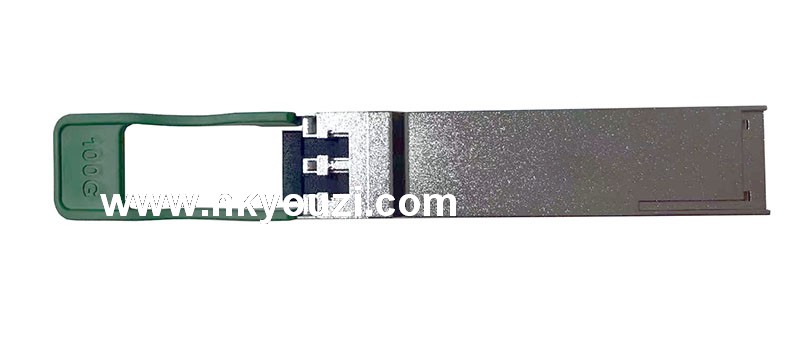

100G QSFP28 LR4 optical transceiver integrates the transmit and receive path onto one module. On the
transmit side, four lanes of serial data streams are recovered, retimed,and passed on to four laser drivers, which
control four electric-absorption modulated lasers (EMLs) with 1296, 1300, 1305, and 1309 nm center wavelengths. The optical signals are then multiplexed into a single-mode fiber through an industry-standard LC connector.On the
receive side, four lanes of optical data streams are optically demultiplexed by an integrated optical demultiplexer. Each
data steam is recovered by a PIN photodetector and transimpedance amplifier, retimed, and passed on to an output
driver. This module features a hot-pluggable electrical interface, low power consumption, and 2-wire serial interf
