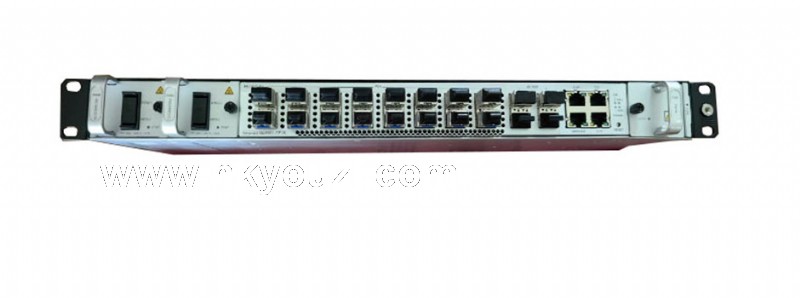

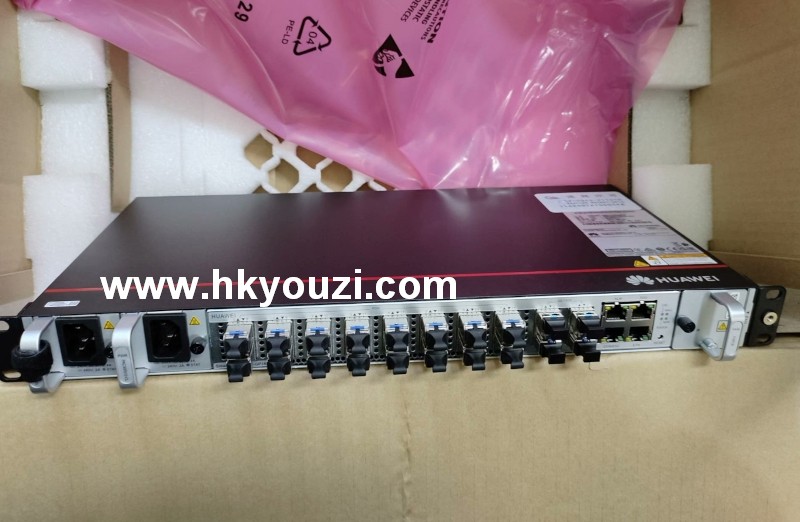

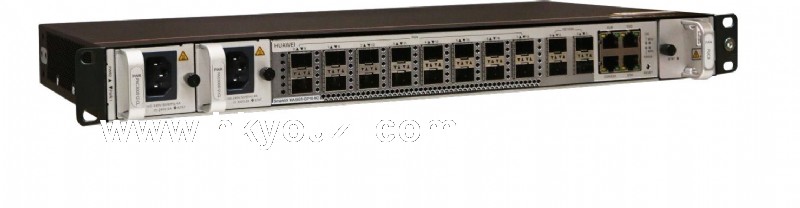

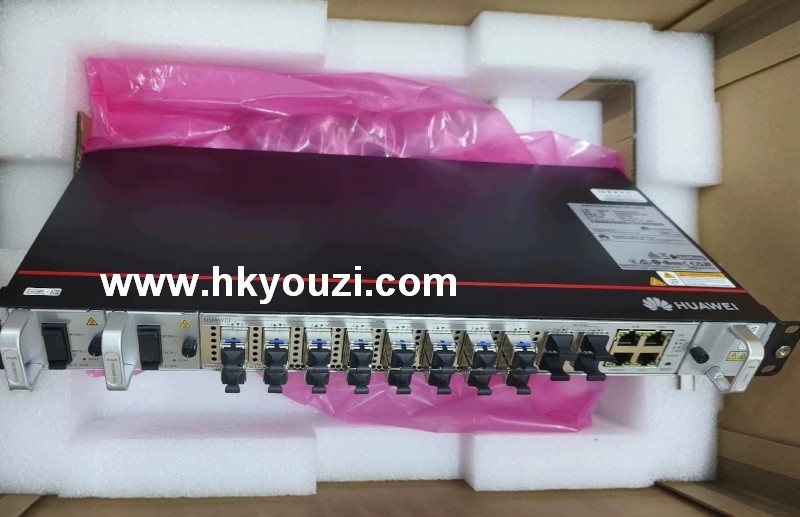

Huawei SmartAX MA5801-GP16 Overview
With the continuous promotion of new services, such as 4K/VR videos, home networks, and network cloudification, optical fiber access has become an important means for countries around the world to popularize broadband networks. As optical fiber access nodes keep moving closer to end users, OLTs are closer to end users. Deployment scenarios are complex and diversified. In this case, network needs OLTs with small volume and low density.
MA5801-GP16 is a compact and low-density box-shaped OLT. It provides multiple fiber to the home (FTTH) solutions to meet the requirements of economical and efficient network construction. It can be flexibly deployed in fast fixed mobile convergence (FMC) scenario, national broadband coverage scenario, and enterprise鈥檚 all-optical campus scenario.
Huawei SmartAX MA5801-GP16 Specifications
| Item | Value |
| Brand | Huawei |
| Model | MA5801-GP16 |
| System switching capacity | 140 Gbit/s |
| MAC addresses | 32768 |
| Access ONT | 1024 |
| IPv4 routing table | 8192 |
| IPv6 routing table | 4096 |
| ARP table | 16384 |
| Maximum fully-loaded weight (AC) | 4.6 kg |
| Power supply mode | l DC power supply (dual backup) |
| l AC power supply (dual backup) | |
| Working voltage range | l DC power supply: 鈥38.4 V to 鈥72 V |
| l AC power supply: 100鈥240 V | |
| Rated voltage | l DC power supply: 鈥48 V/鈥60 V |
| l AC power supply: 110 V/220 V | |
| Maximum input current | l DC power supply: 6 A |
| l AC power supply: 2.5 A | |
| Ambient temperature | 鈥40掳C to +65掳C |
| Ambient humidity | 5%鈥95% RH |
| Atmospheric pressure | 70鈥106 kPa |
| Altitude | < 4000 m. The air density varies with the altitude and will affect the heat dissipation of a device. Therefore, the working environment temperature of the device varies with the altitude. |
| Bit error rate (BER) in full load | A BER smaller than 10 e-7 for a port that transmits data in full load |
| 10GE/GE upstream ports | 4 |
| Service ports | 16 GPON |
| Power consumption | Static power consumption: 55W |
| Typical power consumption: 95W | |
| Maximum power consumption: 140W | |
| Dimensions (W x D x H) (mm) | Excluding mounting ears: 442 x 220 x 43.6 |
| Including IEC mounting ears: 482.6 x 220 x 43.6 | |
| Including ETSI mounting ears: 535 x 220 x 43.6 |
Huawei SmartAX MA5801-GP16 Features
- Fixed-Mobile Convergence, Reusing Cabinet Space at Base Stations
When constructing FTTH networks, mobile operators can fully utilize their already deployed backhaul network resources and cabinet space to deploy the product in mobile cabinets and route drop cables at a short distance. In this way, nearby households can be covered rapidly.
- Universal Coverage, Enabling Rapid Deployment in Low-density Areas
Rural areas have low population densities. In these areas, the MA5801-GP16 can be used together with various optical modules and the one-stop outdoor site solution to implement rapid FTTH network coverage over long distances. In areas where no feeder fibers are routed, the product can be used together with the microwave backhaul solution to implement highly reliable FTTH network access over long distances.
- Private Line Access in Enterprise Campuses, Supporting Flexible Deployment and Management
Operators can use the product to construct, operate, and maintain optical networks on enterprise campuses. Alternatively, operators can lease optical networks to campuses or enterprises to provide all-optical access services for enterprise campuses.
