Technical Specifications

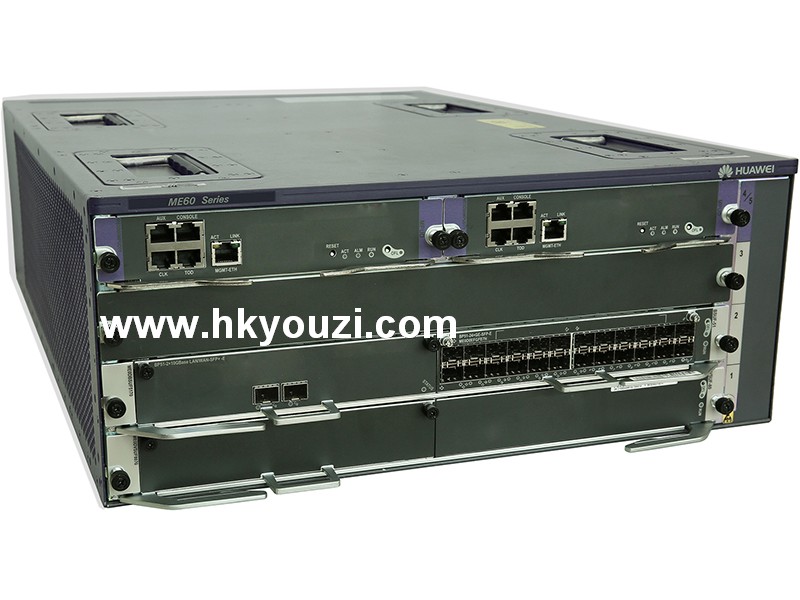

| Item | Specification |
|---|---|
| Cabinet installation standards | Can be installed in a standard 19" 800 mm-deep cabinet. A Huawei 2.2 m-high N68E cabinet is used by default. |
| Dimensions without packaging (H x W x D) [mm(in.)] | 175 mm x 442 mm x 650 mm (6.89 in. x 17.40 in. x 25.59 in.) |
| Chassis height [U] | 4 U |
| Weight without packaging [kg(lb)] | 15 kg (33.07 lb) |
| Weight without packaging (full configuration) [kg(lb)] | 42 kg (92.59 lb) |
| Typical power consumption (with configuration) [W] | 800 W (fully configured with BSUF-51s) 920 W (fully configured with BSUF-120s) 1239 W (fully configured with BSUF-241s) |
| Typical heat dissipation (with configuration) [BTU/hour] | 2595.5 BTU/hour (fully configured with BSUF-51s) 2984.9 BTU/hour (fully configured with BSUF-120s) 4019.8 BTU/hour (fully configured with BSUF-241s) |
| MTBF [year] | 34.76 year |
| MTTR [hour] | 0.5 hour |
| Availability | 0.999998358 |
| Power supply mode | DC built-in |
| Maximum number of power chassis inputs | (1 channel/PEM)*2 PEM=2 channels |
| Rated input voltage [V] | 鈥48 V/ 鈥60 V |
| Input voltage range [V] | 鈥38.4 V to 鈥72 V |
| Maximum input current [A] | 42 A/single-module |
| Maximum input cable size [mm²] | 25 mm² |
| Front-end circuit breaker/fuse [A] | 50 A |
| Noise at normal temperature (acoustic power) [dB(A)] | ETSI-compliance (<72dBA @ 23掳C (73.4掳F)) |
| Number of slots | 5 |
| Number of service board slots | 3 |
| Switching capacity | 1.08 Tbit/s |
| Redundant MPUs | 1:1 |
| Redundant power supply | 1+1 |
| Redundant fans | Support for proper fan operation in case of a single fan failure for a short period at 40掳C (104掳F) |
| Long-term operating temperature [掳C(掳F)] | 0掳C to 45掳C (32掳F to 113掳F) |
| Short-term operating temperature [掳C(掳F)] | -5掳C to 55掳C (23掳F to 131掳F) |
| Restriction on the operating temperature variation rate [掳C(掳F)] | 鈮 30掳C/hour (86掳F/hour) |
| Storage temperature [掳C(掳F)] | -40掳C to 70掳C (-40掳F to 158掳F) |
| Long-term operating relative humidity [RH] | 5% RH to 85% RH, non-condensing |
| Short-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Storage relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | 鈮 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature of the device must decrease by 1掳C [1.8掳F] for every 220 m [721.78 ft.].) |
| Storage altitude [m(ft.)] | < 5000 m (16404 ft.) |

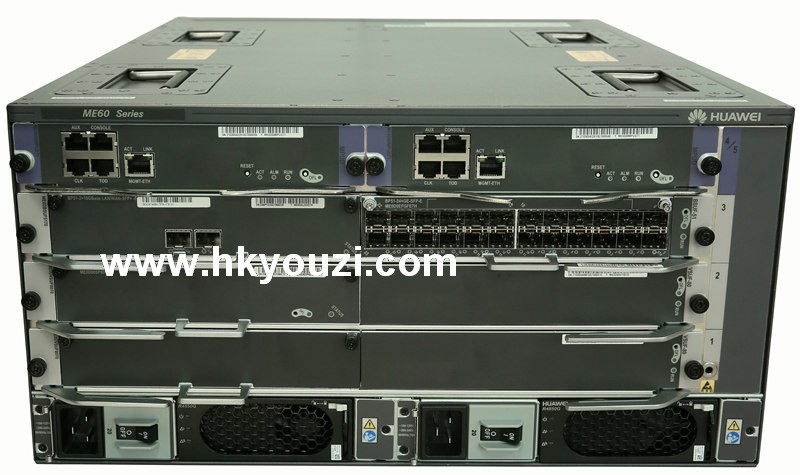

| Item | Specification |
|---|---|
| Cabinet installation standards | Can be installed in a standard 19" 800 mm-deep cabinet. A Huawei 2.2 m-high N68E cabinet is used by default. |
| Dimensions without packaging (H x W x D) [mm(in.)] | 220 mm x 442 mm x 650 mm (8.66 in. x 17.40 in. x 25.59 in.) |
| Chassis height [U] | 5 U |
| Weight without packaging [kg(lb)] | 25 kg (55.12 lb) |
| Weight without packaging (full configuration) [kg(lb)] | 52 kg (114.64 lb) |
| Typical power consumption (with configuration) [W] | 950 W (fully configured with BSUF-51s) 1070 W (fully configured with BSUF-120s) 1386 W (fully configured with BSUF-241s) |
| Typical heat dissipation (with configuration) [BTU/hour] | 3082.2 BTU/hour (fully configured with BSUF-51s) 3471.5 BTU/hour (fully configured with BSUF-120s) 4496.8 BTU/hour (fully configured with BSUF-241s) |
| MTBF [year] | 34.76 year |
| MTTR [hour] | 0.5 hour |
| Availability | 0.999998358 |
| Power supply mode | AC built-in |
| Maximum number of power chassis inputs | (1 channel/PEM)*2 PEM=2 channels |
| Rated input voltage [V] | 200 V to 240 V |
| Input voltage range [V] | 180 V to 264 V |
| Maximum input current [A] | 12A/single-module |
| Maximum input cable size [mm²] | Standard C19 cable |
| Front-end circuit breaker/fuse [A] | 16 A |
| Noise at normal temperature (acoustic power) [dB(A)] | ETSI-compliance (<72dBA @ 23掳C (73.4掳F)) |
| Number of slots | 5 |
| Number of service board slots | 3 |
| Switching capacity | 1.08 Tbit/s |
| Redundant MPUs | 1:1 |
| Redundant power supply | 1+1 |
| Redundant fans | Support for proper fan operation in case of a single fan failure for a short period at 40掳C (104掳F) |
| Long-term operating temperature [掳C(掳F)] | 0掳C to 45掳C (32掳F to 113掳F) |
| Short-term operating temperature [掳C(掳F)] | -5掳C to 55掳C (23掳F to 131掳F) |
| Restriction on the operating temperature variation rate [掳C(掳F)] | 鈮 30掳C/hour (86掳F/hour) |
| Storage temperature [掳C(掳F)] | -40掳C to 70掳C (-40掳F to 158掳F) |
| Long-term operating relative humidity [RH] | 5% RH to 85% RH, non-condensing |
| Short-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Storage relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | 鈮 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature of the device must decrease by 1掳C [1.8掳F] for every 220 m [721.78 ft.].) |
| Storage altitude [m(ft.)] | < 5000 m (16404 ft.) |
