| Item | Details |
|---|---|

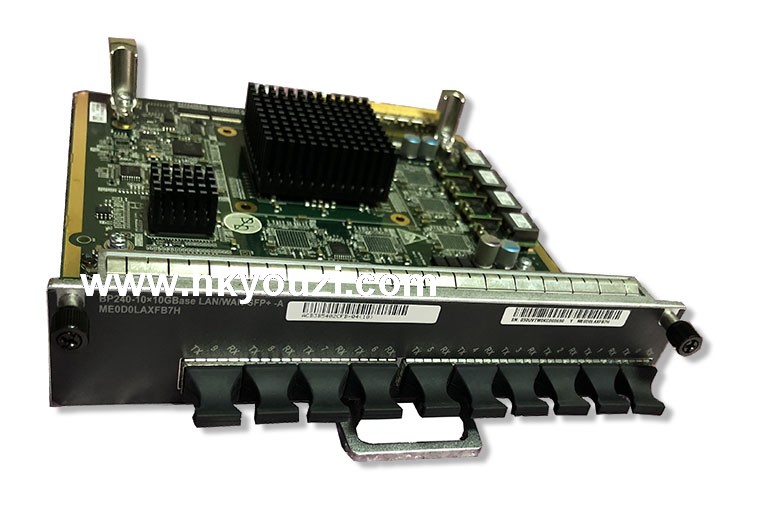

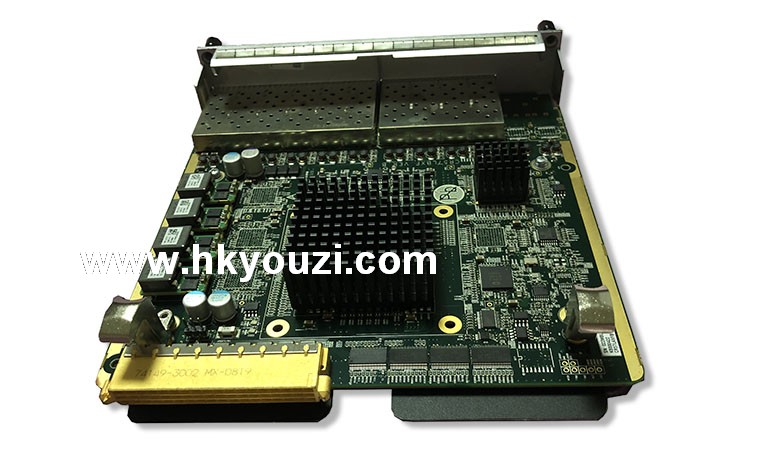

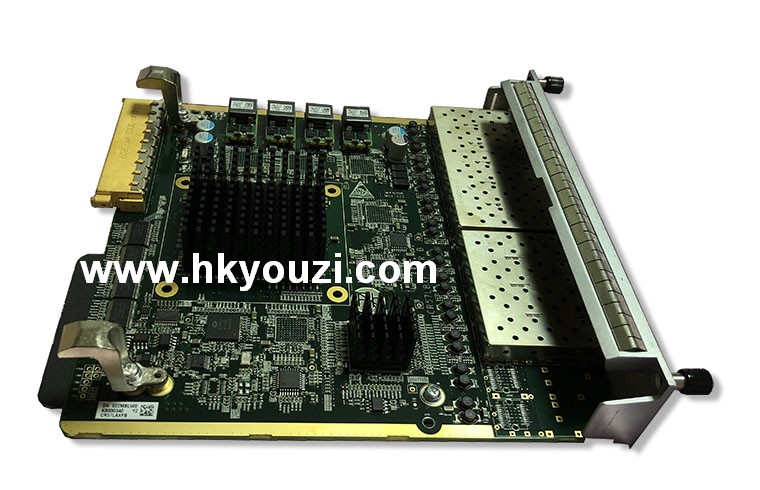

| Description | 10-Port 10GBase LAN/WAN-SFP+ Flexible Card(BP240) |
| Part Number | 03030UVT-001 |
| Model | ME0D0LAXFB7H |
| Card type | Flexible Board |
| Silkscreen | BP240-10x10GBase LAN/WAN-SFP+ -A |
| Functions and Features | Description |
|---|---|
| Basic function | Provides ten 10GE interfaces for line-rate transmitting and receiving. |
| Reliability and availability | Hot swappable. |
| Restrictions and remarks | The 10G interfaces working in WAN mode can function only as master interfaces. |
| Breakout supported | No |
| Interface rate auto-sensing supported | Supports GE/10GE auto-sensing. |
| FlexE supported | No |
| Link protocol | - |
| Item | Specification |
|---|---|
| Dimensions without packaging (H x W x D) [mm(in.)] | 37.2 mm x 178.7 mm x 193.3 mm (1.46 in. x 7.04 in. x 7.61 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 95 mm x 290 mm x 370 mm (3.74 in. x 11.42 in. x 14.57 in.) |
| Weight without packaging [kg(lb)] | 0.8 kg (1.76 lb) |
| Weight with packaging [kg(lb)] | 1.2 kg (2.65 lb) |
| Typical power consumption [W] | 39.6 W |
| Typical heat dissipation [BTU/hour] | 128.46 BTU/hour |
| Long-term operating temperature [°C(°F)] | 0°C to 45°C (32°F to 113°F) |
| Short-term operating temperature [°C(°F)] | –5°C to +55°C (23°F to 131°F) |
