Brand:ZTE
Module name:Fiber Optic Transceivers

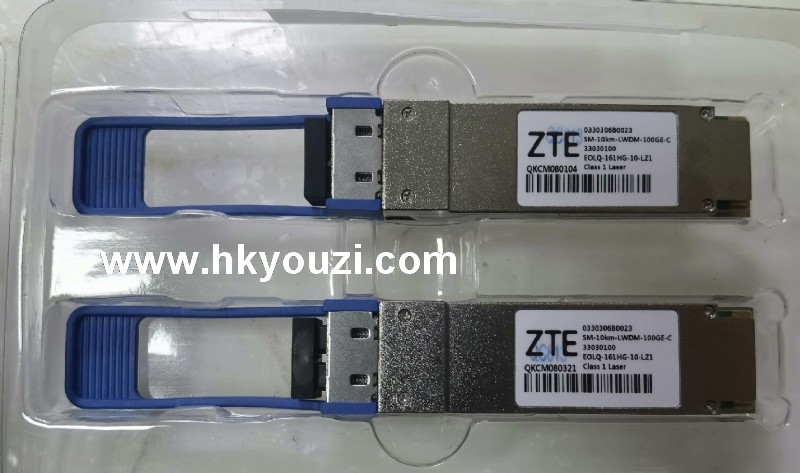

Model:ZTE_EOLQ-161HG-10-LZ1
The ZTE_EOLQ-161HG-10-LZ1 is a Fiber Optic Transceiver with Data Rate 103.1 Gb/s, Wavelength 1294.53 to 1310.19 nm, Distance/Reach 10 km, Output Power -10.6 to 10.5 dBm, Receiver Sensitivity -8.6 dBm.
Description
ApplicationsApplications High-speed interconnects within and between switches, routers and transport equipment, Server-Server Clusters, Super-computing interconnections, Proprietary backplanes, Interconnects rack-to-rack, shelf-to-shelf, board-to-board, board-to-optical backplane Standard Supported IEEE 802.3ba
Connections & InterfaceConnector LC Interface I2C, 4x
General ParametersData Rate 103.1 Gb/s Wavelength 1294.53 to 1310.19 nm Distance/Reach 10 km Output Power -10.6 to 10.5 dBm Fiber Modes Single Mode Form Factor QSFP Receiver Sensitivity -8.6 dBm Power Dissipation 3.5 W Rx Power -10.6 to 4.5 dBm Tx Power 10.5 dBm Tx/Rx Component PIN(Rx) Supply Voltage 3.3V Network Technology 100GBASE-SR4 RoHs Yes
