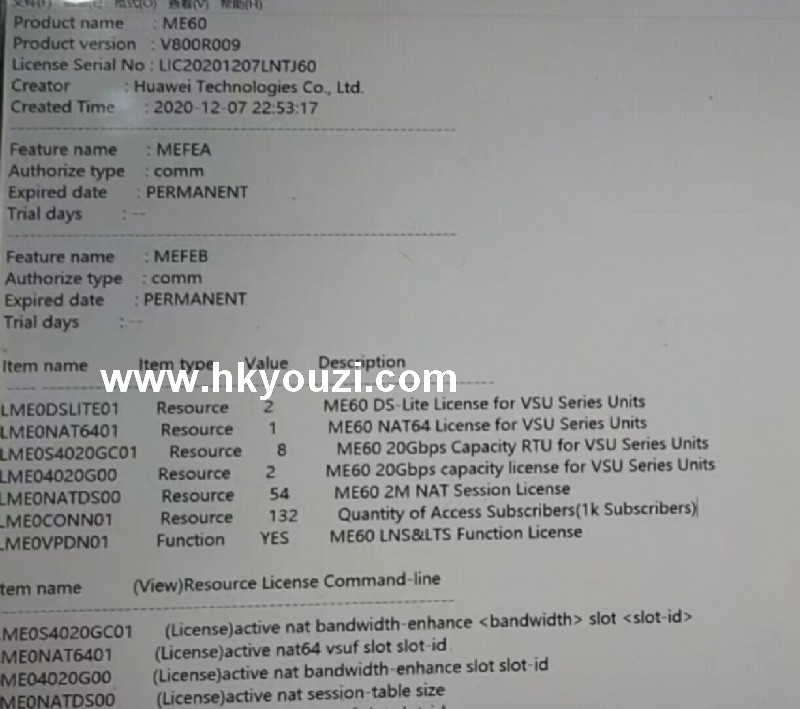

ME60-X8 Overview
ME60 series are multiple-service control gateways (BRASs) developed by Huawei for industries such as broadcasting, television, and education. ME60s provide a platform for unified user access and management.
Based on a 2T platform, ME60s provide the industry鈥檚 largest-capacity routing line card (480G) and a large-capacity NAT service line card (160G) that enable customers to smoothly evolve from IPv4 to IPv6.
Table 1 Basic information about the ME60-X8
| Description | Part Number | Model | First Supported Version | Remarks |
|---|---|---|---|---|
| ME60-X8 Integrated Chassis Components (Including 4 DC Power) | 02352021 | ME0B0BKP0830 | V800R008C10 | 鈥 |
ME60-X8 Appearance and Components
Figure 1 Appearance of Huawei ME60-X8

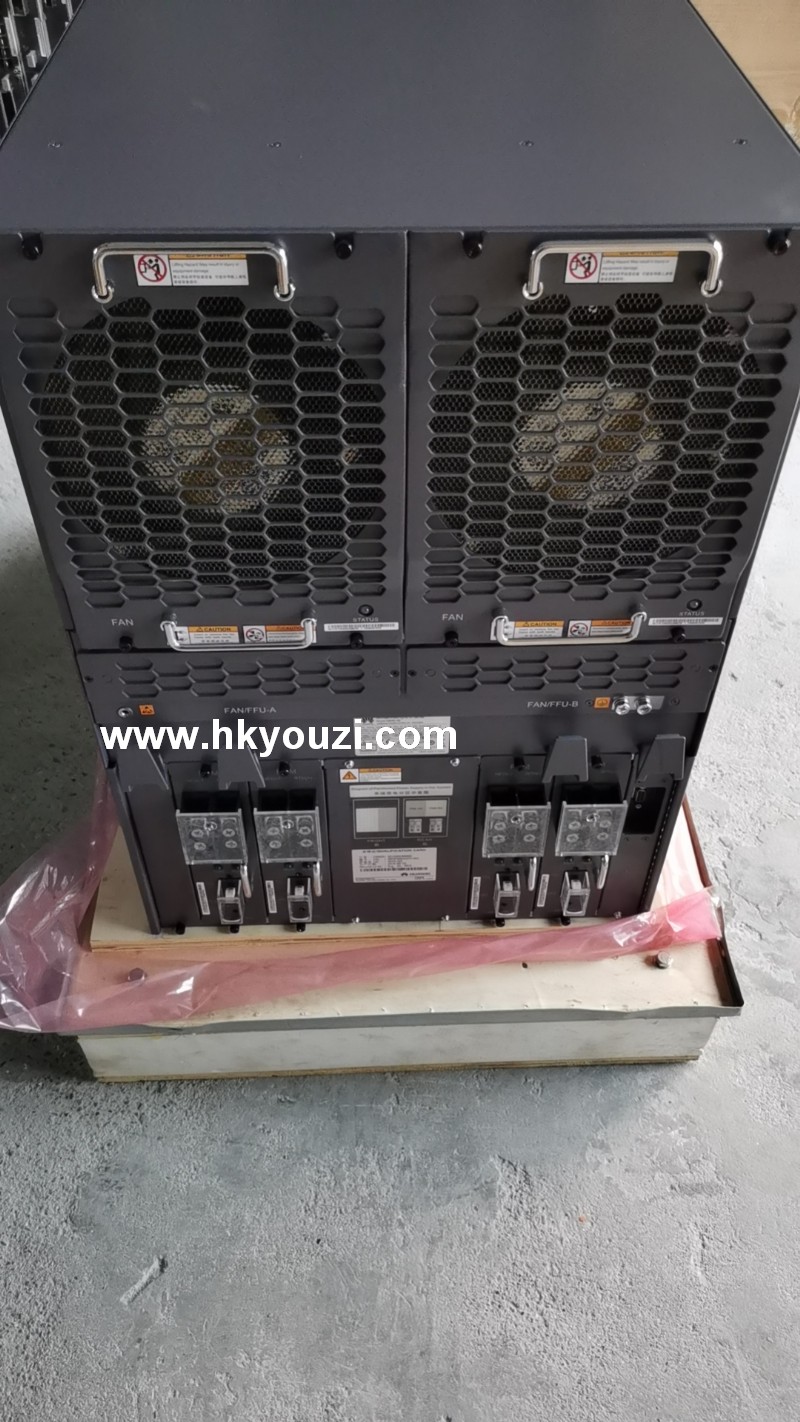

Figure 2 Components
| 1. Air intake vent | 2. SRU | 3. SFU | 4. BSU/MSU |
| 5. Cable tray | 6. Fan | 7. Filler Panel | 8. Ground terminal |
| 9. Rear cable trough | 10. Power management interface | 11. DC power module | 12. Handle |
| 13. Central monitoring module (Optional) | 14. Mounting ear | 鈥 | 鈥 |
Technical Specifications
| Item | Specification |
|---|---|
| Cabinet installation standards | Can be installed in a standard 19鈥 800 mm-deep cabinet. A Huawei 2.2 m-high N68E cabinet is used by default. |
| Dimensions without packaging (H x W x D) [mm(in.)] | 620 mm x 442 mm x 650 mm (24.41 in. x 17.40 in. x 25.59 in.)(Chassis main body) 620 mm x 442 mm x 770 mm (24.41 in. x 17.40 in. x 30.31 in.)(Dimensions of the chassis body together with cable trays and front and back attachments) |
| Chassis height [U] | 14 U |
| Weight without packaging (base configuration) [kg(lb)] | 43.2 kg (95.26 lb) |
| Weight without packaging (full configuration) [kg(lb)] | 136 kg (299.88 lb) |
| Typical power consumption [W] | 3220 W (fully configured with BSUF-240s) |
| Typical heat dissipation [BTU/hour] | 10447 BTU/hour (fully configured with BSUF-240s) |
| MTBF [year] | 33.89 year |
| MTTR [hour] | 0.5 hour |
| Availability | 0.999998316 |
| Power supply mode | DC built-in |
| Maximum number of power chassis inputs | (1 channel/PEM)*4 PEM=4 channels |
| Rated input voltage [V] | 鈥48 V/ 鈥60 V |
| Input voltage range [V] | 鈥38.4 V to 鈥72 V |
| Maximum input current [A] | 70 A/module |
| Maximum input cable diameter [mm²] | 35 mm²/channel |
| Front-end circuit breaker/fuse [A] | 70 A |
| Noise at normal temperature (acoustic power) [dB(A)] | NEBS-compliance (< 78 dBA @ 27掳C (80.6掳F)) |
| Number of slots | 11 |
| Number of service board slots | 8 |
| Switching capacity | 7.08Tbps(BSUF-240) |
| Redundant MPUs | 1:1 |
| Redundant Switch fabrics | 2+1 |
| Redundant power supply | 2+2 |
| Redundant fans | 2 assemblies Support for proper fan operation in case of a single fan failure for a short period at 40掳C (104掳F) |
| Long-term operating temperature [掳C(掳F)] | 0掳C to 45掳C (32掳F to 113掳F) |
| Short-term operating temperature [掳C(掳F)] | -5掳C to 55掳C (23掳F to 131掳F) |
| Restriction on the operating temperature variation rate [掳C(掳F)] | 鈮 30掳C/hour (86掳F/hour) |
| Storage temperature [掳C(掳F)] | -40掳C to 70掳C (-40掳F to 158掳F) |
| Long-term operating relative humidity [RH] | 5% RH to 85% RH, non-condensing |
| Short-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Storage relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | 鈮 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature of the device must decrease by 1掳C [1.8掳F] for every 220 m [721.78 ft.].) |
| Storage altitude [m(ft.)] | Less than 5000 m (16404 ft.) |
