Overview
| Item | Details |
|---|---|
| Description | Flexible Card Versatile Service Unit 80(VSUF-80) |
| Part Number | 03054496 |

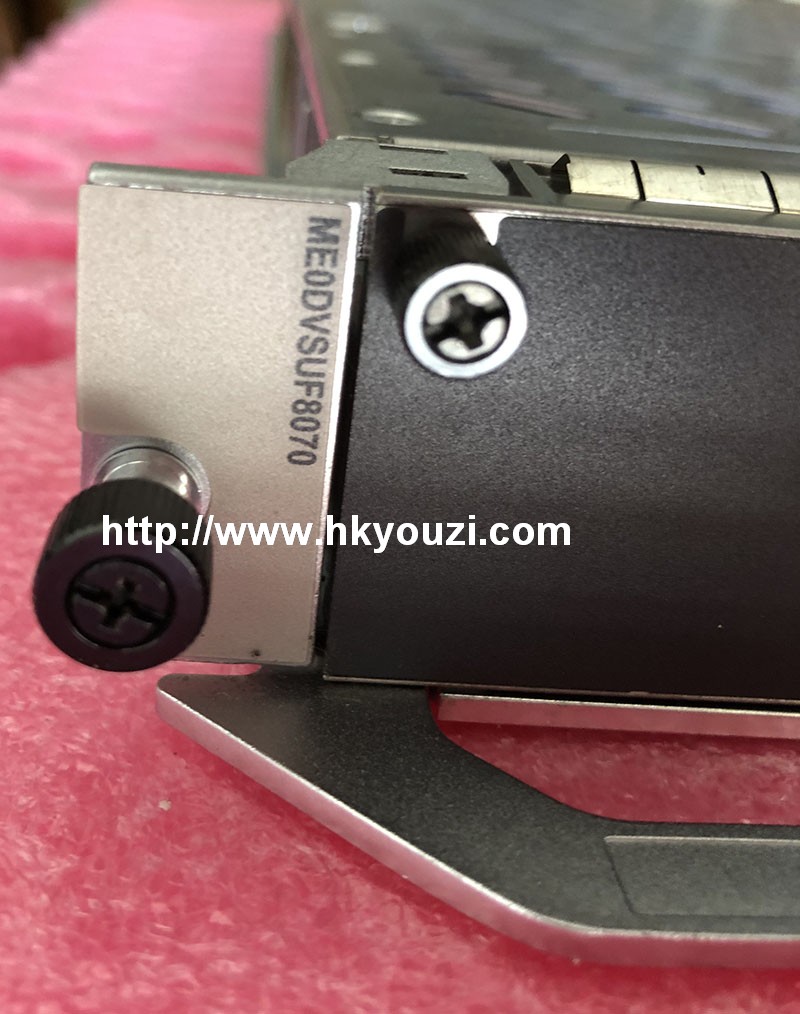

| Model | ME0DVSUF8070 |
| Card type | Mother Flexible Board |
| Silkscreen | VSUF-80 |
Functions and Features
| Functions and Features | Description |
|---|---|
| Basic function | Supports a maximum of 80 Gbit/s line-rate service processing capability. |
| Reliability and availability | Hot swappable. |
| Restrictions and remarks | To ensure good heat dissipation, it is recommended that the VSUF-80 be installed in slot 3, 4, 5, or 6 of an ME60-X8 chassis and in slot 3, 4, 5, or any slot from 10 to 14 of an ME60-X16. The SPH6xx patch needs to be installed to support this board. |
| Breakout supported | No |
| Interface rate auto-sensing supported | No |
| Link protocol | - |
Technical Specifications
| Item | Specification |
|---|---|
| Dimensions without packaging (H x W x D) [mm(in.)] | 40.1 mm x 399.2 mm x 535.6 mm (1.58 in. x 15.72 in. x 21.09 in.) |
| Weight without packaging [kg(lb)] | 7.5 kg (16.54 lb) |
| Typical power consumption [W] | 182 W |
| Typical heat dissipation [BTU/hour] | 590.48 BTU/hour |
| Long-term operating temperature [掳C(掳F)] | 0掳C to 45掳C (32掳F to 113掳F) |
| Short-term operating temperature [掳C(掳F)] | 鈥5掳C to +55掳C (23掳F to 131掳F) |
