CATEGORY
| Item | Value |
|---|---|
| Basic Information | |

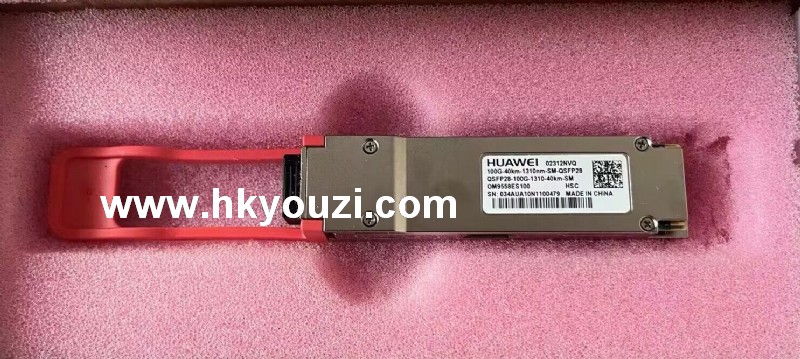

| Module name | QSFP28-100G-1310-40km-SM |
| Part Number | 02312NVQ |
| Model | QSFP28-100G-1310-40km-SM |
| Form factor | QSFP28 |
| Application standard | IEEE 802.3 100GBASE-ER4 |
| Connector type | LC |
| Optical fiber type | SMF |
| Working case temperature [°C(°F)] | 0°C to 70°C |
| Transmission rate [bit/s] | 100Gbit/s |
| Target transmission distance [km] | 40 km |
| Transmitter Optical Characteristics | |
| Center wavelength [nm] | 1310 nm |
| Maximum Tx optical power [dBm] | 2.9 dBm |
| Minimum Tx optical power [dBm] | -2.9 dBm |
| Minimum extinction ratio [dB] | 8 dB |
| Receiver Optical Characteristics | |
| Rx sensitivity (AVG) [dBm] | -20.9 dBm |
| Overload power (AVG) [dBm] | -3.5 dBm |
